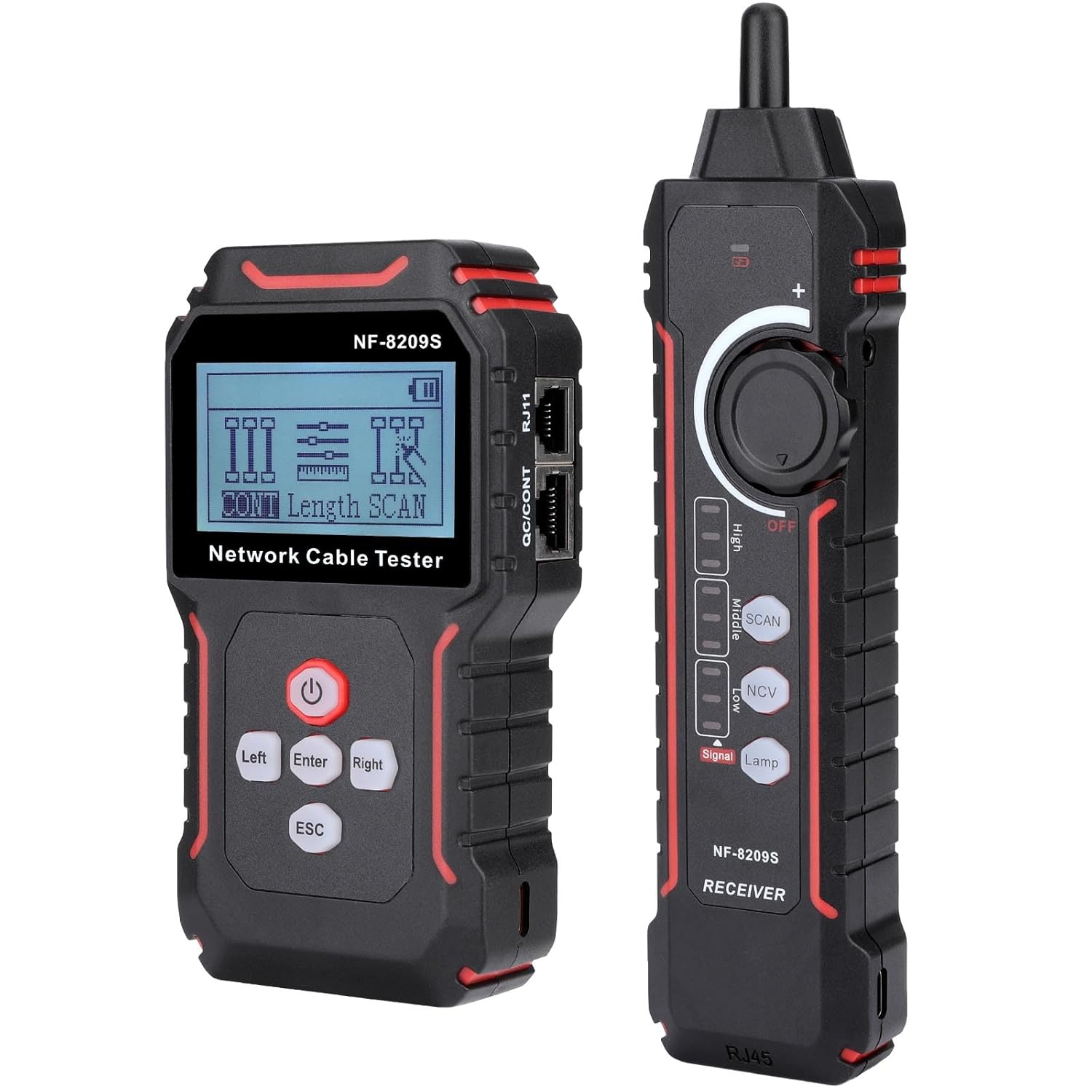

RJ45 Network Cable Tester and Tracer, VXSCAN NF-8209S Ethernet Cable Tester Wire Tracer with NCV & Lamp for CAT5 CAT6 CAT6a - Cont/Length Measurement/SCAN/Flash/QC/NCV/POE Tester
4.7 (15 items)
Limited Time SaleUS$343.22 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211306606 | Release Date | 2026/04/04 | List Price | US$228.82 | Model Number | 211306606 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [New Upgrade - Network Cable Tester] This NF-8209S ethernet cable tester is an upgraded version of the classic NF-8209 ethernet cable tester, using a new generation of chips and more accurate sensor technology. It can provide AC filter and analog signal in one network audio generator and probe. It has two modes for options to track cable like Analog mode and Digita mode
- [All-in-one Design] VXSCAN Network Cable Tester is designed to reduce cable testing and troubleshooting time for those who have testing needs. Combines functions such as CONT, LENGTH Measurement, SCAN, POE, FLASH, QC, NCV Test and LED lighting in one unit. Equipped with RJ45 remote interface, no additional preparation is required. Suitable for CAT 5 CAT 6/6A Cables. Realize one machine with multiple functions, which can be used flexibly to meet your testing needs
- [Cable Test & Length Measurement] Connect the network cable to be tested to the transmitter, and the wire tracker will automatically detect the status of short circuit, crossover and open circuit of the network cable, and display the status on the LCD screen to facilitate accurate positioning of the line and port. The network cable tester measures cable length and identifies the distance of open circuits and short circuits. Dynamically calibrates cable length and make length measurement as accurate as 99%. Length test range: 2.5~200m (8ft~650ft)
- [Port Flashing & POE Test] The Poe Ethernet Cable Tester is designed to test standard PoE equipment, including af/at standards, power supply voltage, power supply polarity and mode, and can withstand up to 60V DC. Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch
- [Cable Continuity Testing & NCV] Test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V)
- [Excellent Service & LED Lamp] VXSCAN Network Cable Tester supports an LED lamp, which you can use to turn on the illumination light in low-light or dark environments. Additionally, the ethernet cable tester comes with lifetime friendly customer service. If you have any questions about using the product or need advice, please feel free to contact us. We will reply to you within 24 hours
| Color | black |
|---|---|
| Model | NF-8209S |
| Brand Name | VXSCAN |
| Style Name | NF-8209S |
| Manufacturer | VXSCAN |
| Power Source | Battery Powered |
| Measurement Type | Ohmmeter, Voltmeter |
| Included Components | Emitter，Receiver， RJ45 interface network cable |
